LiuGongElectric Wheel Loader

870HE4.7 m³ bucket · 423 kWh · 160 kW

Operating weight
24,640kg
Standard bucket
4.7
Battery
423kWh
Breakout force
221kN
ABOUT THE PRODUCT

870HE

Electric · zero emissions

When your work demands high-volume material handling with no compromise on the environment, the LiuGong 870HE is the right answer. This fully electric wheel loader delivers heavy-class power with zero exhaust emissions and drastically lower operating costs.

Powerful, clean and remarkably fast. The LiuGong 870HE is an investment in the future of your business, combining T-series robustness with the economy of electric drive.

FEATURES

Product features

01

Outstanding battery capacity: Equipped with a powerful 423 kWh LFP battery, this model is ready for the hardest tasks in quarries and mines.

02

Unmatched work speed: With the fastest total hydraulic cycle of just 9.5 seconds, the 870HE delivers remarkable working dynamics and more loads per shift.

03

Exceptional loading power: A 4.7 m³ standard bucket and an impressive 221 kN breakout force guarantee that the densest materials are handled with ease.

04

Reach and height for large trucks: With a dump height of 3,101 mm, this wheel loader fills high-capacity haul vehicles with ease.

05

Maximum protection and durability: Components are protected to IP67, with intelligent liquid cooling that allows reliable operation at altitudes of up to 5,000 metres.

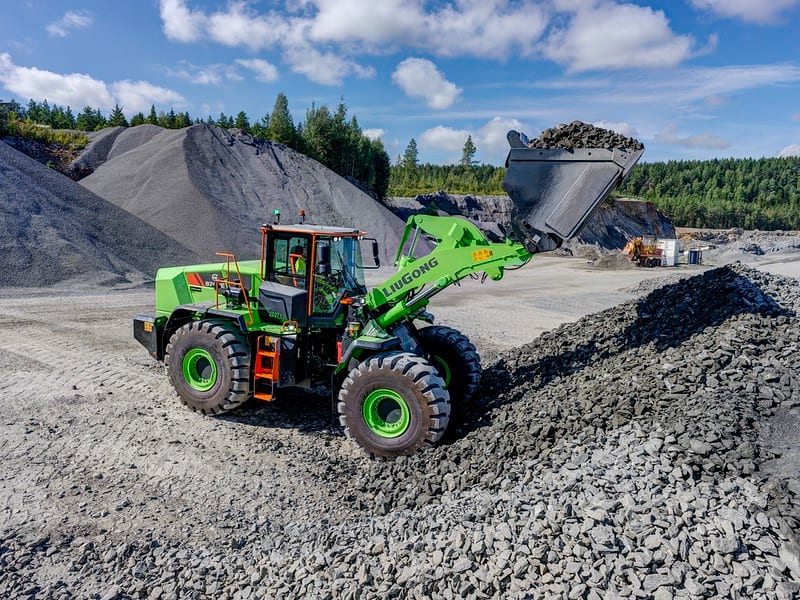

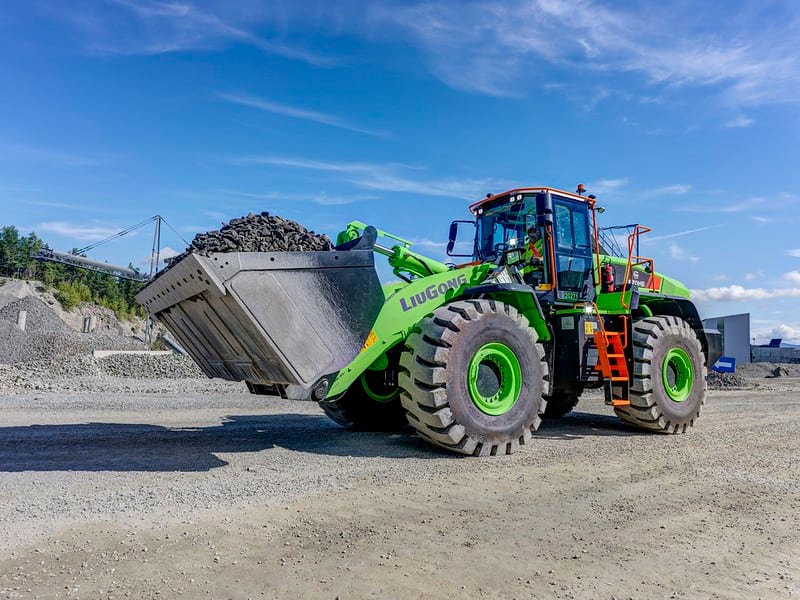

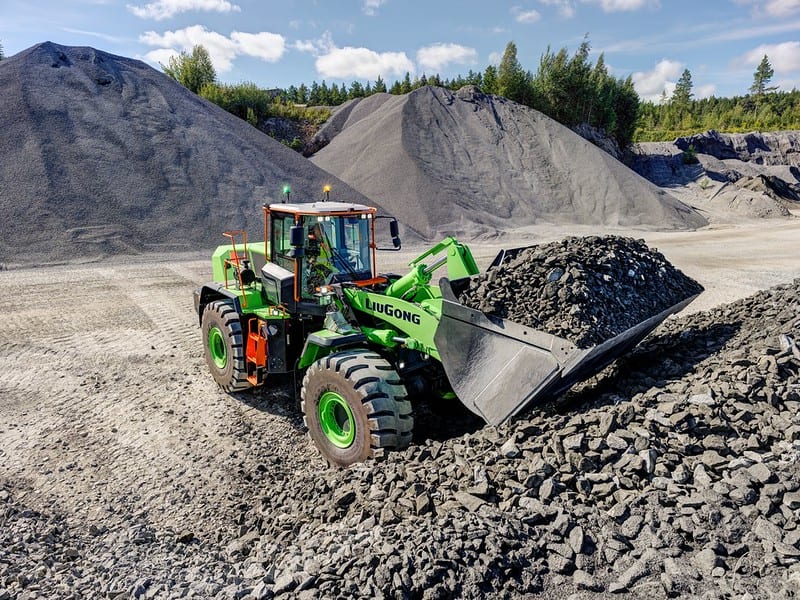

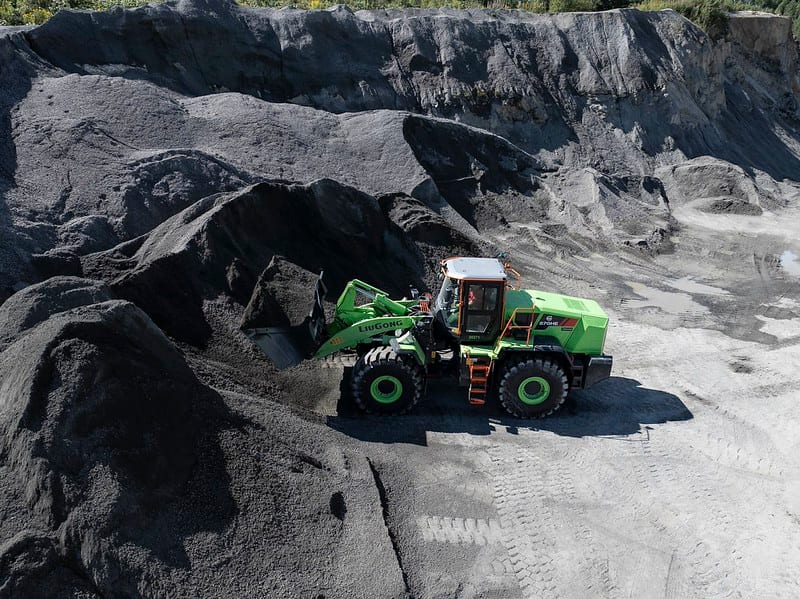

GALLERY

In action

Need a quote for the 870HE?

Send us an enquiry and we will come back to you with a configuration and delivery dates – a reply within one working day.

SPECIFICATIONS

Specifications

Key technical specifications for the 870HE.
PDF brochure ↓
Operating weight24,640 kg
Standard bucket4.7 m³
Breakout force221 kN
BatteryLFP 423 kWh
Charging time (12–95%, 240 kW)95 min
Engine power160 kW (drive) / 160 kW (hydraulic)
Dump height3,101 mm
Total cycle time9.5 s
TransmissionPlanetary, electronically controlled
BrakesFully hydraulic wet brakes
Max. altitude5,000 m
